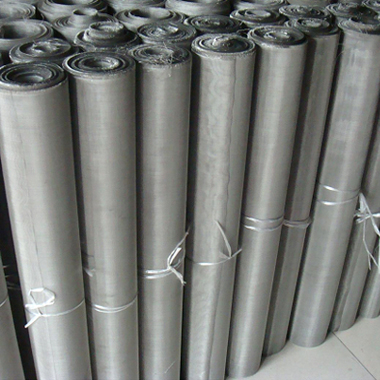

Stainless Steel Mesh

HOME > Wire Mesh & Wire Netting > Stainless Steel Netting >

Stainless Steel Mesh Quick Details:

  • Usage:oil industry,Chemical Packing Nets,chemical fiber industry
  • Material: SS wire 201, 304, 304L, 316, 316L, 431, 321 347 etc.
  • MOQ: 5 rolls.
  • Color: Sliver
  • Type: Weave Wire Mesh Width:0.5,1m, 1.2m,1.5,2.1,etc.
  • Width: 1m, 1.5m, 2m, etc.
  • Length: 10m,20m,30m,50m and etc.
  • Packing:Inner kraft, outside plastic cloth, put into wooden pallet or case
  • Delivery: 10 days, according to specification and stock
Properties Detail

Stainless Steel NettingStainless Steel NettingMild Steel Mesh

Plain/Twill weave stainless steel wire mesh is used for screening and filtering in acid or alkali environment. As mud mesh in oil industry, chemical packing nets, chemical fiber industry as screen mesh, electroplating industry as pickling nets.

Stainless Steel Netting Mesh Specifications:

Type Mesh/Inch Wire diameter (inch) OPen Area Weight (LB) /100 Square Foot
Plain,Twill Wire Mesh 1 × 1-635 × 635 0.0008"-0.08" 25 to 84.6 2.53 to 41.1
Type Mesh/Inch Wire diameter   (inch)   Absolute Filtration Finess μm Nominal Filtration Finess μm
Plain Dutch Weave Wire Mesh 8 × 85 - 80 × 400 0.014'' × 0.0126''- 0.0049'' × 0.0028'' 318-340 to 43-48 250-255 to 35-40
Twill Duntch Weave Wire Mesh 20 × 250 - 500 × 3200 0.0098'' × 0.0079'' - 0.0015'' × 0.0010'' 110-120 to 8-9 98-105 to 2-3
