Holland wire mesh

Holland wire mesh Quick Details:

Usage: industry and agriculture building, transportation and mining
Material: low carbon steel wire,galvanized wire,and PVC coated wire ,PE wire
MOQ:100 Panel
Color:Silver
Type: panel
Width: 0.5m to 2.5
Length: 10m,15m, 25m,30m,50m,100m
Packing：Packing by pallet
Delivery: 10 days, according to specification and stock

Properties Detail

Holland wire mesh is also known as Dutch Mesh or Wave Welded Mesh. It can be made of black mild steel wire or galvanized wire, quality welded on each joint point, PVC PE or PP powder coated the surface by sulfide treatment, with good adhesion, anticorrosion, flittering luster, etc. The surface treatment also can be electro galvanized, hot dipped galvanized.

Euro fence is also known as dutch mesh or wave welded mesh. It can be made of black mild steel wire or galvanized wire, quality welded on each joint point, PVC PE or PP powder coated the surface by sulfide treatment, with good adhesion, anticorrosion, flittering luster, etc. The surface treatment also can be electro galvanized, hot dipped galvanized.

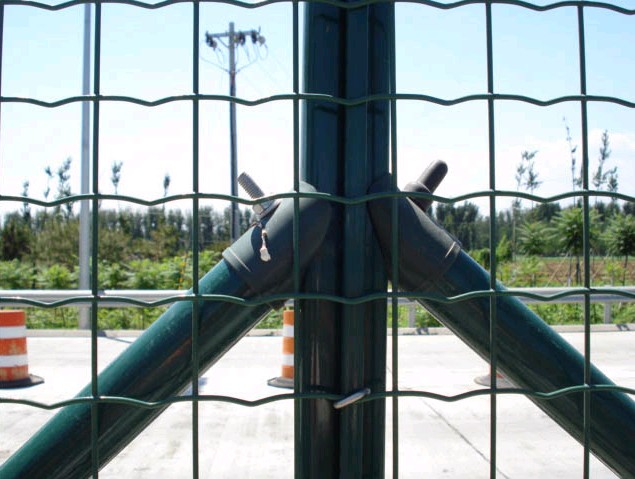

Holland wire mesh has a simple design structure, scientific principle of product design, affordable price, easy installation and other advantages. It is generally used as a guardrail, and it is deeply loved by people.

Material:High quality iron rod, Stainless steel wire, Low carbon steel wire, PVC coated wire

Surface Treatment: PVC, PE or PP powder coated, electro galvanized, hot dipped galvanized.

Weaving and Characteristic:

The warp bended beforehand is welded with the weft with the surface treated by galvanizing, hot-galvanizing, PVC coating, PVC plating and they have such characteristics as beautiful appearance, smooth mesh, firm welding, good beforehand bending property, steadiness, good anticorrosion and resistance to aging.

Chain Link Fencing Mesh Specifications:

Product name	Specification				Elucidation
Product name	Mesh	Wire Dia.		Size
Height cm	BWG	Wire Diameter mm	Opening cm	Fixed Link	Length of mesh (2.5m)	Length (2.5m)
Height cm	BWG	Wire Diameter mm	Opening cm	Weight (kg/set)	Weight (kg/piece)
60	10#/8#	3.24	5x12	1.9	6.5	8.6
80	10#/8#	3.24	5x12	2.3	7.5	9.9
100	10#/8#	3.24	5x12	2.7	8.5	11.2
120	10#/8#	3.24	5x12	3.1	9	11.9
150	10#/8#	3.24	5x12	3.7	11	14.5
180	10#/8#	3.24	5x12	4.3	12.5	16.5
200	10#/8#	3.24	5x12	4.7	13.5	17.8
