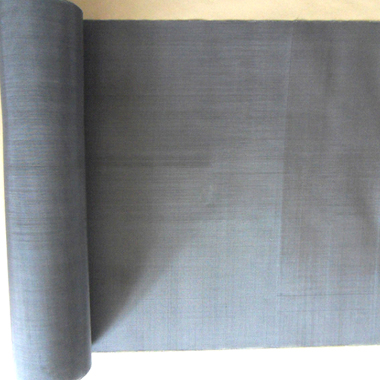

Titanium Wire Mesh

Titanium Wire Mesh Quick Details:

Material Type: Ta1 Ta2 Gr1 Gr2
Wire Mesh Width: 1m,1.2m,1.5m
Application: Medical
Shape: Square
Size: 0.6mm Thickness
Type: Plain Wire Mesh
MOQ: 5kgs
Packing:Wooden case outside and vacuum coating inside
Delivery:Within 5~30 days according to the quantity

Properties Detail

Titanium mesh was mainly used for sieving and filtering under the acid,alkali environmental conditions or gas and liquid or other medium separation. There are main plain weaving, twill weaving and Dutch weaving method. Plain weaving is the most common method, the main feature is that the density of the longitudinal and latitudinal wire is same. Twill titanium mesh was mainly used in petroleum, chemical industry, chemical fiber, aerospace and other industries.

Titanium Wire Mesh Specifications:

Mesh count	Thread diameter(mm)	Aperture(mm)	Max width(m)
10	0.60	1.94	1.60
20	0.40	0.87	1.60
30	0.30	0.55	1.60
40	0.23	0.40	1.60
50	0.20	0.31	1.60
60	0.15	0.27	1.60
70	0.12	0.24	1.60
80	0.13	0.19	1.60
90	0.12	0.16	1.60
100	0.10	0.15	1.60
120	0.09	0.12	1.60
150	0.063	0.11	1.60
180	0.053	0.01	1.60
200	0.053	0.07	1.60
250	0.040	0.063	1.60
300	0.040	0.044	1.60
325	0.035	0.043	1.60
350	0.030	0.042	1.60
400	0.030	0.033	1.60
The specifications of above products are available according to the customer' s request
