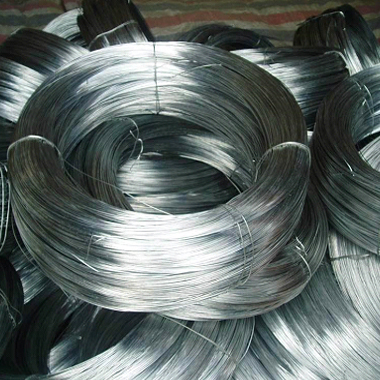

Electro Galvanized Wire

Electro Galvanized Wire Quick Details:

- Type: electric galvanized wire
- Material: Q195(C is 0.06%-0.12%)
- Diameter: 0.5mm- 6.0mm
- Elongation: 10%-25%
- Weight: 1kg-800kg/coil
- MOQ: 100 kg
- Zinc coating: General is 40g/sqm-60g/ sqm
- Tensile strength: 300N/ sqm-1500N/ sqm
- Packaging Details: Inside with plastic film, outside weaving bag

Properties Detail

Galvanized iron wire has good toughness and elasticity, the highest amount of zinc can reach 300 grams / square meter. With a thick galvanized layer, strong corrosion resistance and other characteristics.Electroplating zinc is in the plating tank through the current unidirectional so that zinc gradually coated with metal appearance, production speed is slow, galvanized layer uniform,thinner thickness, usually only 3-15 microns, the appearance of light, poor corrosion resistance, generally several Month will rust.Relatively hot galvanized, galvanized production costs lower.

Electro Galvanized Wire Specification

Wire Gauge Size	SWG(mm )	BWG(mm)	BG(mm)
6	4.87	5.15	5.032
7	4.47	4.57	4.481
8	4.06	4.19	3.988
9	3.66	3.76	3.551
10	3.25	3.40	3.175
11	2.95	3.05	2.827
12	2.64	2.77	2.517
13	2.34	2.41	2.24
14	2.03	2.11	1.994
15	1.83	1.83	1.775
16	1.63	1.65	1.588
17	1.42	1.47	1.412
18	1.22	1.25	1.257
19	1.02	1.07	1.118
20	0.91	0.89	0.996
21	0.81	0.813	0.887
22	0.71	0.711	0.749
23	0.61	0.025	0.707
24	0.56	0.022	0.629
25	0.51	0.02	0.56
26	0.46	0.018	0.498
