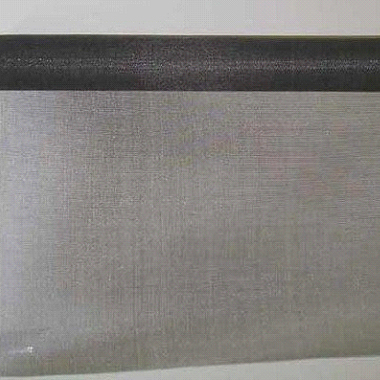

Tungsten Wire Mesh

HOME > Brass Mesh & Special Material > Tungsten Wire Mesh >

Tungsten Wire Mesh Quick Details:

  • Material: tungsten wire
  • Color: Black Grey
  • Transport Package: Wooden Case, Also Can Pack as Costomers′ Requst
  • Types: flash edge tungsten woven mesh, wrapped edge tungsten woven mesh.
  • Hole pattern: square hole, rectangle hole.
  • Screen Size: 0.5-100mesh
  • Mesh width: 10mm-2000mm
  • Delivery time:15 days after U confirmation
Properties Detail

Tungsten Wire MeshTungsten Wire MeshTungsten Wire Mesh

Titanium woven wire mesh is a kind of products with outstanding corrosion resistance, low density and nontoxic performance.

In the corrosion environment, the surface of high purity titanium mesh will form an oxidation film layer to protect wire mesh from being corroded. The layer is compact and inert, which has strong resistance to the corrosion. It has excellent corrosion resistant performance in below environment: Seawater, wet chlorine, chlorite and hypochlorite solution, nitric acid, chromic acid, metal chlorides and organic salts.

Tungsten Wire Mesh Specifications:

Mesh Wire diameter mm Aperture mm Opening Area % Weight (kg/m2) Mesh Wire diameter mm Aperture mm Opening Area% Weight (kg/m2)
10 0.13 2.41 90% 0.20 60 0.10 0.323 58% 0.73
10 0.25 2.25 81% 0.76 80 0.10 0.217 47% 0.98
18 0.13 1.28 82% 0.37 100 0.02 0.234 85% 0.04
20 0.13 1.14 80% 0.41 100 0.025 0.229 81% 0.07
20 0.18 1.09 74% 0.79 100 0.05 0.204 65% 0.30
30 0.05 0.797 88% 0.09 120 0.05 0.161 58% 0.36
30 0.10 0.747 78% 0.36 140 0.03 0.151 69% 0.15
40 0.025 0.61 92% 0.03 150 0.02 0.149 78% 0.07
50 0.02 0.488 92% 0.02 150 0.025 0.144 73% 0.11
50 0.025 0.483 90% 0.03 160 0.02 0.138 76% 0.07
50 0.05 0.458 81% 0.15 180 0.02 0.121 74% 0.08
