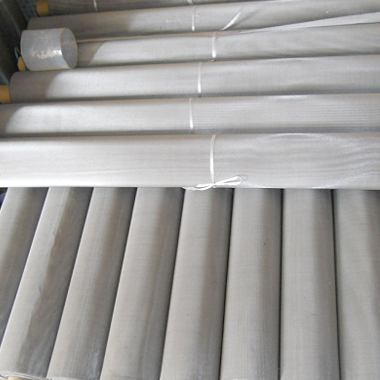

Fly Screen Stainless Steel

Fly Screen Stainless Steel Quick Details:

Usage: As mud mesh in oil industry,Chemical Packing Nets,chemical fiber industry as screen mesh,electroplating industry as picking nets.
Material: SS wire 201, 304, 304L, 316, 316L, 431, 347 etc.
MOQ: 5 rolls.
Color: Sliver
Width:0.5,1m,1.2m,1.5,2.1,etc.
Length: 10m,20m,30m,50m and etc.
Packing：Inner kraft, outside plastic cloth, put into wooden pallet or case
Delivery: 10 days, according to specification and stock

Properties Detail

Stainless steel 304 insect /fly screen/ mosquito mesh window screen. Security stainless steel security wire mesh is made from high strength stainless steel wire through the precision loom weaving. It has the property of resisting of shearing and impact force. It not only prevent the thefts and bullet but also has elegant appearance. It is your ideal home decoration product.

Fly Screen Stainless Steel Specification

Type	Mesh/Inch	Wire diameter (inch)	OPen Area	Weight (LB) /100 Square Foot
Plain,Twill Wire Mesh	1 × 1-635 × 635	0.0008"-0.08"	25 to 84.6	2.53 to 41.1
Type	Mesh/Inch	Wire diameter (inch)	Absolute Filtration Finess μm	Nominal Filtration Finess μm
Plain Dutch Weave Wire Mesh	8 × 85 - 80 × 400	0.014'' × 0.0126''- 0.0049'' × 0.0028''	318-340 to 43-48	250-255 to 35-40
Twill Duntch Weave Wire Mesh	20 × 250 - 500 × 3200	0.0098'' × 0.0079'' - 0.0015'' × 0.0010''	110-120 to 8-9	98-105 to 2-3
