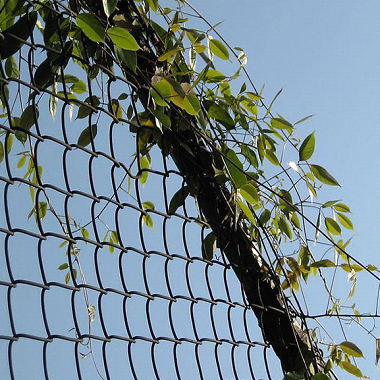

Chain Link Fencing

Chain Link Fencing Quick Details:

Usage:Construction Wire Mesh
Material: low-carbon steel wire ,galvanized steel wire
Surface Finish:galvanized,PVC coated or PE powder coated
MOQ:10rolls
Colour:green and black. Other colors also available on request.
Width:0.5-4m
Length:15m,30m ,ect
Packing:In bulk or Carton or Pallet
Delivery Time:10-15 days after received your deposit.

Properties Detail

Chain Link Fence, also called Cyclone Fence or Diamond Mesh Fence. As a versatile Fence, Chain link Fences are the fastest and most cost effective fence products on the market today. using the woven steel wire to make the panel, it is widely used in

everywhere. Due to the different applications, it is available in various wire gauges and mesh sizes. All Chain Link Fence rolls are completed with line wires and knuckled edges. What’s more, the Chain Link Fence with barbed edges is more popular and has higher security.

Chain Link Fencing Specification

Opening	1"	1.5"	2"	2-1/4"	2-3/8"	2-1/2"	2-5/8"	3"	4"
	25mm	40mm	50mm	57mm	60mm	64mm	67mm	75mm	100mm
Wire diameter	18Ga - 13Ga		16Ga - 8Ga					18Ga-7Ga
	1.2mm- 2.4mm		1.6mm - 4.2mm					2.0mm-5.00mm
Length of the roll	0.50M - 100M(or more)
Width of the roll	0.5M - 5.0M
Surface Treatment	Hot Dipped Galvanized OR Electric Galvanized + Polyester Powder Coated (All colors in RAL)
Materials and specifications can be made according to customer detailed requireme
