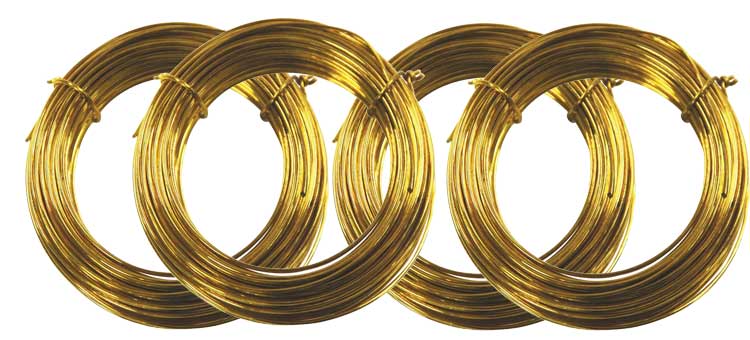

Brass Wire

Brass Wire Quick Details:

Type:Hard Brass wire
Wire gauge: 0.25mm
Cu(mix):60% ; CuZn37 & CuZn40
Alloy or not:alloy
Ultimate strength(Mpa):980-1180
Conductivity:22%-25%
Tolerance: +/-0.001mm
Packing:4 spools in a carton box
MOQ: 500kg
Delivery :20 days after received the deposit

Properties Detail

Products for power, petroleum, chemical, pharmaceutical, environmental protection, aerospace, military, automotive, marine,electronics, machinery, chemical fiber, food and construction and decoration industry, especially by the machinery and equipment processing and manufacturing industry.

Brass Wire Specification

Type	Standard Diameter (mm)	Tolarance (mm)	Tensile Strength	Breaking Load (Kgf)	Conductivity (%)
Hard	0.100	+/-0.001	≥980	7.70-9.20	22min
	0.150			17.4-20.0
	0.200			30.5-37.0
	0.250			48.1-57.5
	0.300			62.6-76.3
Soft	0.100	+/-0.001	≤550	3.40-4.12	25min
	0.150			7.75-9.22
	0.200			13.8-16.3
	0.250			21.1-25.5
	0.300			31.2-36.7
