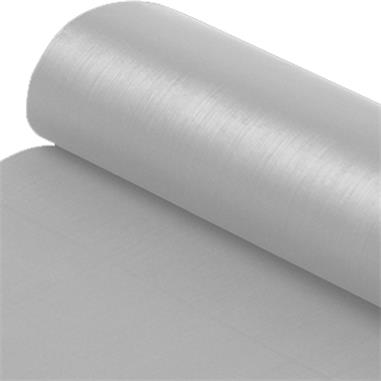

Inconel Wire Mesh

HOME > Brass Mesh & Special Material > Inconel Wire Mesh >

Inconel Wire Mesh Quick Details:

  • Usage: Filter, Construction Wire Mesh, Screen
  • Material: Inconel
  • Type: Stainless Steel Dutch Wire Mesh
  • Weave Technique: Plain Weave
  • Packing: Wooden Case
  • Wire Mesh Width: 1 m
  • Nickels: 8%
  • Specification: 1.2x5 mm
Properties Detail

Inconel Wire MeshInconel Wire MeshInconel Wire Mesh

Inconel Wire Mesh offers superior resistance to oxidation and carburization. It shows excellent combination of resistance to different corrosive media and elevated temperature strength. It resists the chloride ion stress corrosion cracking, pitting and crevice corrosion and high mechanical strength. It offers service temperature up to 1800°F. Inconel Wire Mesh is a wide regulatory class of wire fabric that is made through specific weaving methods. The Wire Mesh screen has four primary operations such as screening, filter, printing and intensification.

Inconel Wire Mesh Specifications:

Mesh/Inch Wire Diameter(mm) Aperture(mm)
4 0.91 5.44
6 0.71 3.52
8 0.50 2.67
12 0.45 1.66
14 0.40 1.41
16 0.30 1.28
20 0.25 1.02
40 0.19 0.45
60 0.15 0.27
90 0.11 0.172
100 0.10 0.154
130 0.07 0.125
180 0.053 0.088
200 0.053 0.074
