Rib Lath

Rib Lath Quick Details:

Usage: industry and agriculture building, transportation and mining
Material: low carbon steel wire,galvanized wire,and PVC coated wire ,PE wire
MOQ:100 Panel
Color:Silver
Type: panel
Width: 0.5m to 2.5
Length: 10m,15m, 25m,30m,50m,100m
Packing：Packing by pallet
Delivery: 10 days, according to specification and stock

Properties Detail

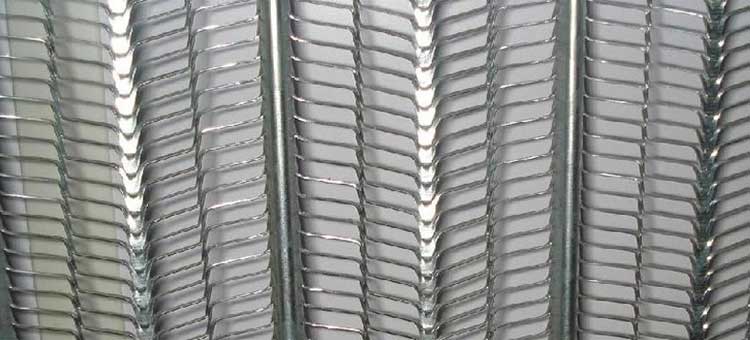

Rib lath is a kind of expanded metal lath stiffened with longitude ribs. The furring design of the mesh provide efficient background or construction of artition,suspended ceilings and refurbishment works, the advance of ribbed lath over metal lathing,that is supporting centers,which can be increased or widened. Rib lath is ideal for refurbishing those damaged or age masonry walls.

Rib Lath Specifications:

Rib Height	Width	Length	Thickness	Materials
3mm	610	2000mm-2500mm	0.25mm-0.50mm	Galv.
4mm	600mm	2000mm-2500mm	0.30mm-0.50mm	Galv.
10mm	600mm	2000mm-2500mm	0.30mm-0.50mm	Galv.
3/8''	27''	97''	3.4lbs/sq yard	Galv.
3/4''	27.5''	97''	5.4kg/sheet	Galv.
25mm	700mm	2000mm-2500mm	0.50mm	Galv.
