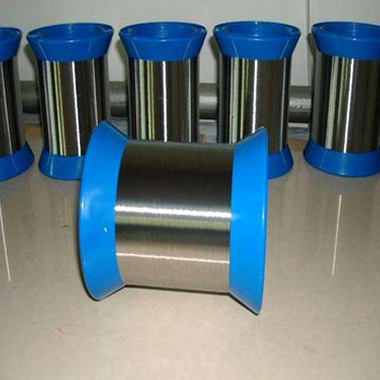

Stainless Steel Wire

Stainless Steel Wire Quick Details:

- Standard: ASTM,AISI,GB,JIS,SUS,DIN,etc
- Type :301,304,304h,304L,etc
- Application:Electric power,petroleum,boiler,high or low
- Package:in spool
- MOQ: 500kg
- Delivery: 20days after received deposit

Properties Detail

Stainless steel wire is made of stainless steel for the production of various types of different specifications and types of wire products, the origin of the United States, the Netherlands, Japan, the cross section is generally round or flat. Common corrosion resistance is good, cost-effective stainless steel wire is 304 and 316 stainless steel wire.

Stainless Steel Wire Specification

Diameter（mm)	Tolerance（mm）	Max.Deviation Tolerance（mm）
0.020-0.049	+0.002 -0.001	0.001
0.050-0.074	±0.002	0.002
0.170-0.184	±0.004	0.004
0.-0.299	±0.005	0.005
0.300-0.310	±0.006	0.006
0.500-0.599	±0.006	0.006
0.800-0.999	±0.008	0.008
1.00-1.20	±0.009	0.009
1.40-1.60	±0.010	0.010
2.00-2.50	±0.012	0.012
2.50-3.00	±0.015	0.015
3.00-4.00	±0.020	0.020
4.00-5.00	±0.020	0.020
