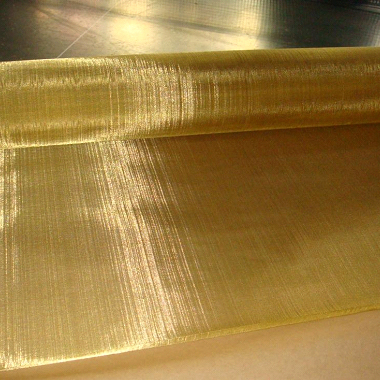

Brass Wire Mesh

Brass Wire Mesh Quick Details:

Usage: Construction Wire Mesh, Screening, Protecting Mesh, Filter
Surface Treatment: Brass Wire
Standard Length: 30 m
Width: 1 m
Material: Brass Wire
Weave Technique: Plain Weave
Feature: Anti-Corrosion
Color: Yellow
Length: 30 m
Transport Package: Waterproof Paper and Wood Box

Properties Detail

Brass wire mesh is also named brass wire cloth that offers excellent electrical and thermal conductivity. It's an ideal mesh for fabricating gasoline filters and baskets for electric polishing. It possesses greater strength than copper or bronze. Applications include electronic security, aviation, outer space exploration and research, power generation, electronic information security,high-frequency scientific and medical equipment. Brass wire mesh has the properties of acid resistance, good alkali resistance, wear resistance, strong tensile strength, better permeability, stable structure and long service life. It is non-magnetic,anti-sparking and is resistant to atmospheric corrosion, salt air and brine. Meantime brass wire mesh also has better abrasion resistance and lower electrical conductivity.

Brass Wire Mesh Specifications:

Mesh Size		Wire Diameter		Aperture	Weight
/inch	/cm	SWG	mm	mm	kgs/M2
6	2.36	22	0.711	3.52	1.68
8	3.15	24	0.61	2.57	1.65
10	3.94	24	0.508	2.03	1.43
12	4.72	26	0.457	1.66	1.39
14	5.51	27	0.417	1.4	1.35
16	6.3	29	0.345	1.24	1.05
18	7.09	30	0.315	1.1	0.99
20	7.87	30	0.315	0.96	1.1
22	8.66	30	0.315	0.84	1.21
24	9.45	30	0.315	0.74	1.32
26	10.24	31	0.295	0.68	1.25
