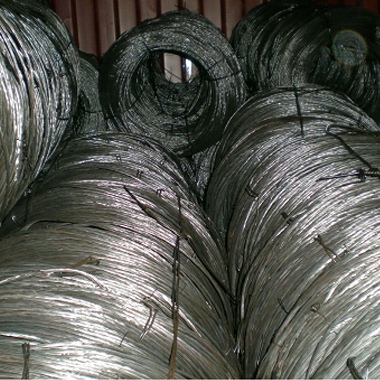

Twist Wire Quick Details:
Twist wire is twisted by several wires together . its more strong and durable. it's widely used in construction or daily use as binding material. Besides, Mainly used in construction, mining, chemical, welded mesh, welded hangers, and then processing. Soft annealed wire, increase flexibility, doing construction tie wire, and has good steel banding.
| Struct | Dia (mm) | Dia. Strand (mm) | Cross- section(mm2) | Tensile Strength(Mpa) | Weight (kg/100m) | ||||
| 1270 | 1270 | 1370 | 1470 | 1570 | |||||
| Minimum Breaking Force(KN) | |||||||||
| 1*3 | 2.90 | 6.2 | 19.82 | 21.40 | 23.10 | 24.90 | 26.80 | 28.60 | 14.49 |
| 3.20 | 6.4 | 24.13 | 26.00 | 28.10 | 30.40 | 32.60 | 34.80 | 20.09 | |
| 3.50 | 7.5 | 28.86 | 31.20 | 33.70 | 36.30 | 39.00 | 41.60 | 24.03 | |
| 4.00 | 8.6 | 37.70 | 40.70 | 44.00 | 47.50 | 50.90 | 54.40 | 31.38 | |
| 1*7 | 1.00 | 3.0 | 5.50 | 5.94 | 6.42 | 6.92 | 7.43 | 7.94 | 4.58 |
| 1.50 | 4.5 | 12.37 | 13.30 | 14.40 | 15.50 | 16.70 | 17.80 | 10.30 | |
| 2.00 | 6.0 | 21.99 | 23.70 | 25.60 | 27.70 | 29.70 | 31.70 | 18.31 | |
| 3.00 | 9.0 | 49.48 | 53.40 | 57.80 | 62.30 | 66.90 | 71.40 | 41.19 | |
| 1*19 | 1.00 | 5.0 | 14.92 | 15.70 | 17.00 | 18.40 | 19.70 | 21.00 | 12.42 |
| 1.60 | 8.0 | 38.20 | 40.40 | 43.60 | 47.10 | 50.50 | 53.90 | 31.80 | |
| 2.50 | 12.5 | 93.27 | 98.60 | 10.60 | 114.0 | 123.0 | 131.0 | 77.64 | |
| 4.00 | 20.0 | 238.76 | 252.0 | 272.0 | 294.0 | 315.0 | 337.0 | 198.76 | |
