Stainless Steel Crimp Mesh

HOME > Stainless Steel Wire Mesh & Filters > Stainless Steel Crimp Mesh >

Stainless Steel Crimp Mesh Details:

    • Materials:black steel wire; white steel wire, lead wire, stainless wire etc.
    • Uses: most used in mine coal factory, construction etc, professions.
    • Processing method: Locked weave, Bi-directional plain weave, single wave weave, two-way wave weaving, rectangular opening weaving.
    • MOQ: 10rolls
    • Weight(Kg/ m2): 6.00,10.00,2.70,8.68,10.40,4.40,5.99,1.43,etc.
    • Wire Gauge (BWG): 8,10,12,14,16,18,etc.
    • Delivery Time:according to specification and stock
Properties Detail

Stainless Steel Crimp MeshStainless Steel Crimp MeshStainless Steel Crimp Mesh

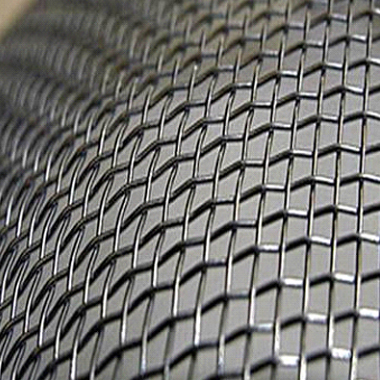

Vibrating screen mesh is the corollary equipment of sand production line. The weaving structure of the vibrating screen mesh is bent into a form of corrugated metal wire in advance, making the two curved locked in the same position so that guarantee the mesh size. There are four types of it: regular woven mesh, single-direction skipped mesh, double-direction skipped mesh and flat-topped mesh. They are widely used in mining, coal mining, construction, glass factory, petroleum, metal products industry
and etc.

Stainless Steel Crimp Mesh Specifications:

Wire Gauge (BWG) Aperture Size ( mm) Wire Dia. ( mm) Weight(Kg/ m2)
8 30 4.06 6.00
10 10 3.25 10.00
12 30 2.64 2.70
14 4 2.03 8.68
14 3 2.03 10.40
16 6 1.63 4.40
16 4 1.63 5.99
18 12 1.22 1.43
18 6 1.22 2.62
20 4 0.91 2.15
20 3 0.91 2.69
