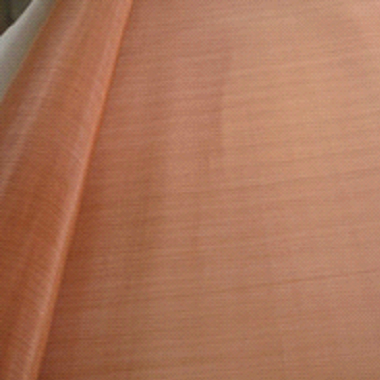

Copper Wire Mesh

HOME > Brass Mesh & Special Material > Copper Wire Mesh >

Copper Wire Mesh Quick Details:

  • Application: Filter
  • Wide : 1.1 m
  • Status: Soft State
  • Transport Package: Weaved Bag
  • Origin: Made in China
  • Material: Copper Wire
  • Colour: Red
  • Metal Wire Drawing: Cold Drawing
  • Specification: 1.0 m, 1.2 m, 1.5 m
Properties Detail

Copper Wire MeshCopper Wire MeshCopper Wire Mesh

Copper wire mesh has good features like anti-corrosion and wear resistance, with good tensile strength and extensibility.Copper wire mesh frequently utilized in applications requiring shielding of electromagnetic interference (EMI).The reduction or exclusion of Electro-magnetic interference is dependent upon the signal amplitude and frequency in relation to the many combinations of mesh count, wire diameter and weaving materials available.

Copper Wire Mesh Specifications:

mesh/inch wire Dia.(mm) aperture (mm) mesh/inch wire Dia. (mm) aperture (mm) mesh/inch wire Dia. (mm) aperture (mm)
2 mesh 1.6 11.10 20 mesh 0.25 1.02 110 mesh 0.09 0.141
4 mesh 0.91 5.44 30 mesh 0.21 0.64 120 mesh 0.09 0.122
6 mesh 0.71 3.52 40 mesh 0.19 0.45 130 mesh 0.07 0.125
8 mesh 0.50 2.67 50 mesh 0.15 0.36 140 mesh 0.07 0.111
10 mesh 0.50 2.04 60 mesh 0.15 0.27 150 mesh 0.06 0.109
12 mesh 0.45 1.66 70 mesh 0.13 0.232 160 mesh 0.06 0.098
14 mesh 0.40 1.41 80 mesh 0.12 0.197 180 mesh 0.053 0.088
16 mesh 0.30 1.28 90 mesh 0.11 0.172 200 mesh 0.053 0.074
18 mesh 0.25 1.16 100 mesh 0.10 0.154 220 mesh 0.05 0.065
width:0.60m -1.8m
