Gabions

HOME > Mesh Fencing Systerms & Gabions > Gabions >

Gabions Quick Details:

  • Usage:Fence Mesh
  • Material: Low Carbon Steel Wire, Low carbon steel wire
  • Surface treatment:hot dipped galvanized or pvc coated
  • MOQ:50sets
  • Color:metal color
  • Type:Silver,Green,etc
  • Weaving:Reverse twisted
  • Packing:pallet
  • Delivery Time:15 Days after the advanced payment
Properties Detail

GabionsGabionsGabions

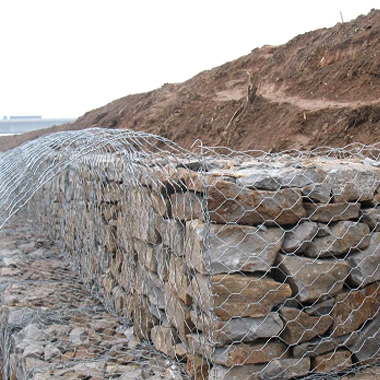

Gabions Box are wire container made of hexagonal wire mesh.Wire diameter varies with the hexagonal wire mesh .For hexagonal wire netting without PVC coating,The wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated hexagonal wire mesh.The outside diameter ranges from 3.0mm to 4.5mm. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire mesh.

Gabions Specification

  Gabion Boxes 80x100mm 100x120mm Mesh Wire Dia. 2.70mm Zinc coating: >260g/m2
Edge Wire Dia. 3.40mm Zinc coating: >275g/m2
Tie Wire Dia. 2.20mm Zinc coating: >240g/m2
  Mattress 60x80mm Mesh Wire Dia. 2.20mm Zinc coating: >240g/m2
Edge Wire Dia. 2.70mm Zinc coating: >260g/m2
Tie Wire Dia. 2.20mm Zinc coating: >240g/m2
  Special sizes are available. Mesh Wire Dia. 2.00~4.00mm
Edge Wire Dia. 2.70~4.00mm
Tie Wire Dia. 2.00~2.20mm
