Kanthal Wire Mesh

HOME > Brass Mesh & Special Material > Kanthal Wire Mesh >

Kanthal Wire Mesh Quick Details:

  • Packaging: Water-proofed paper,plastic film
  • Material: FeCrAl (Aludirome) wire
  • Weave Pattern: plain weave, twill weave and dutch weave.
  • MOQ: 100 rolls
  • Color:metal color
  • Delivery time: according to customer requirements
Properties Detail

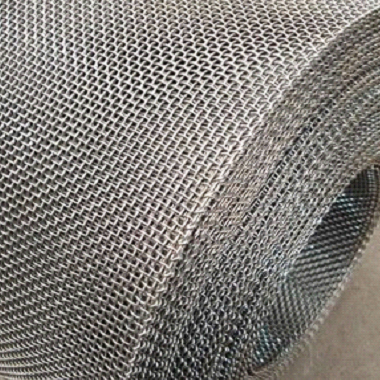

Kanthal Wire MeshKanthal Wire MeshKanthal Wire Mesh

The Kanthal (FeCrAl alloy) wire mesh is known for its ability to withstand high temperatures and having great electric resistance.The Kanthal (Iron-chromium-aluminum alloy) wire cloth has high very high heat resistance feature.The maximum temperature of up to 1400 degrees,also have long time usage,high surface load,good oxidation resistance, high resistivity.

Kanthal Wire Mesh Specifications:

Mesh/Inch Wire Dia mm d Mesh Opening mm w Opening Area A % Mesh /Inch Wire Dia mm d Mesh Opening mm w Opening Area A %
4 1.02 5.33 70.45% 18 0.40 1.01 51.30%
5 1.05 4.03 62.90% 24 0.36 0.70 43.60%
8 0.89 2.28 51.60% 24 0.28 0.78 54.10%
8 0.71 2.47 60.30% 26 0.40 0.58 35.00%
10 0.90 1.64 41.70% 40 0.25 0.39 37.00%
14 0.64 1.17 41.80% 60 0.15 0.27 41.30%
16 0.50 1.08 46.70% 80 0.12 0.19 39.00%
18 0.46 0.95 45.40% 100 0.07 0.18 51.84%
