Double Wire Fencing

HOME > BLOG > welded wire mesh suppliers >

Double Wire Fencing

Jun 06, 2018

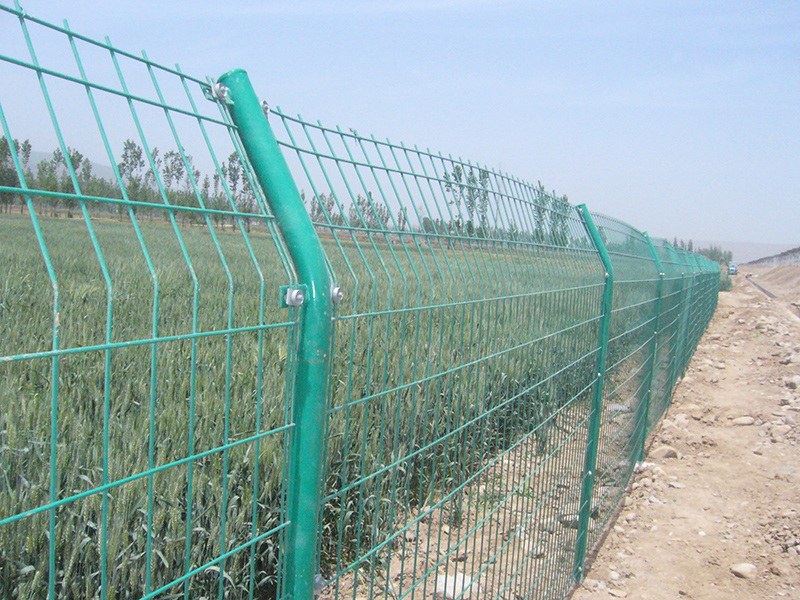

Double Wire Fencing

Double Wire Fencing product introduction:

The Double Wire Fencing is a double wire fence net, which is a kind of common fence net. It is also the simplest structure and the lowest price in the fence net product. The construction cost is low and the installation is convenient, so that the Double Wire Fencing is favored by the consumers.

As a kind of railing products with very flexible assembly, Double Wire Fencing can be made into a permanent net wall, and can also be used as a temporary net. It can be realized only by using different fixing ways of the pillars.

Product material and production process:

Double Wire fence are made of high-quality wire rods as raw materials. They are galvanized, primed, and sprayed with high-adhesion powders to produce a corrosion-resistant mesh surface. The top of the column has a plastic cover or rain cap that can effectively prevent the erosion of the rain and the pollution of dust.

Double Wire fence  Product specification:

  •  After the plastic wire: 3.5mm-5.5mm
  • Mesh: 60mm x 120mm Bilateral wire
  • Maximum size: 2300mm x 3000mm
  • Column: 48mm x 2mm Steel Pipe Dip Treatment
  • Border: None;
  •  Accessories: rain caps, connection cards, anti-theft bolts
  • Connection method: card connection

Double Wire fence Features:

  • The price is cheap: The product structure is simple and the material is low, so the project cost is low
  • Lighter weight: very convenient for long-distance transportation
  • Strong protection: integrate the bottom of the fence with the brick wall, which effectively overcomes the weakness of the lack of rigidity and enhances the protection performance.
  • Wide range of applications: Installation is not affected by topography and terrain, especially suitable for hilly areas
  • Efficient anti-corrosion: long service life

Double Wire fence Installation method:

  •        1. Accurately grasp the information of various facilities when installing the Double Wire Fencing, especially the exact location of the various pipelines buried in the roadbed, and do not allow any damage to the underground facilities during the construction process.
  •        2. When the fence of the fence net is struck too deep, the column shall not be pulled out for correction. The foundation must be rebuilt and then re-entered, or the position of the column should be adjusted. When approaching depth during construction, attention should be paid to controlling the hammering force.
  •        3. If the flange plate is to be installed on the bridge of the expressway, pay attention to the positioning of the flange plate and the elevation of the top surface of the column.
  •        4. If the Double Wire Fencing mesh is used as a collision fence, the appearance quality of the product depends on the construction process. During the construction, attention should be paid to the combination of construction preparation and pile driver, continuously sum up experience, strengthen construction management, and the quality of the installation of the fence can be improved. Guarantee.

Double Wire fence  Product Usage:

The Double Wire Fencing is mainly used for the isolation of highways, roads, railways, airports, factories, factories, workshops, stadiums, playground fences, school fences, communities, ports, docks, municipal green spaces, garden beds, animal husbandry, etc. network.

Double Wire
