Welded Mesh Panel

HOME > Wire Mesh & Wire Netting > Welded Mesh Panel >

Welded Mesh Panel Quick Details:

  • Usage:School Playground using,Park Using,Airport Using and so on.
  • Material:Low Carbon Steel Wire
  • MOQ:10 rolls.
  • Colour: Green,Yellow,Blue,Red,Silver and White,etc.
  • Width:0.5---5m
  • Length: 10m,20m,30m,50m and etc.
  • Packing:Each of the both ends is wrapped with plastic cloth and mesh bag, and then packed in the box; as the customers' require
  • Delivery: 10 days, according to specification and stock
Properties Detail

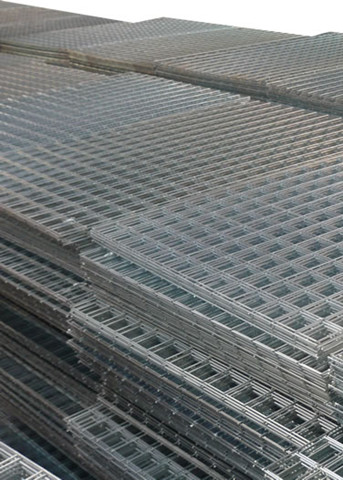

Welded Mesh PanelWelded Mesh PanelWelded Mesh Panel

Welded wire mesh in galvanized iron, stainless steel or pvc coated wire. Welded mesh products are made of high quality wire.Welded wire mesh first step is wire drawing,and later we will cut the same length wire to weld mesh. We can make welded wire mesh rolls, and welded wire mesh panels.The finished products is level and flat with sturdy structure. The panels used to be safety fence,the rolls will be used in a number of industries.

Welded Mesh Panel Specifications:

Opening Wire Diameter<BWG>
In inch In metric unit(mm)
1/4"×1/4" 6.4mm×6.4mm 22,23,24
3/8"×3/8" 10.6mm×10.6mm 19,20,21,22
1/2"×1/2" 12.7mm×12.7mm 16,17,18,19,20,21,22,23
5/8"×5/8" 16mm×16mm 18,19,20,21
3/4"×3/4" 19.1mm×19.1mm 16,17,18,19,20,21
1"×1/2" 25.4mm×25.4mm 16,17,18,19,20,21
1-1/2"×1-1/2" 38mm×38mm 14,15,16,17,18,19
1"×2" 25.4mm×50.8mm 14,15,16
1"×2" 50.8mm×50.8mm 12,13,14,15,16
Technical Note: 1.Standard roll length: 30m;    width: 0.5m to 1.8m                                              2.Special sizes available at request      3.Packing: in waterproof paper in rolls. Custom packing available at request.
