Holland wire mesh

HOME > Wire Mesh & Wire Netting > Holland wire mesh >

Holland wire mesh Quick Details:

  • Usage: industry and agriculture building, transportation and mining
  • Material: low carbon steel wire,galvanized wire,and PVC  coated wire ,PE wire
  • MOQ:100 Panel
  • Color:Silver
  • Type: panel
  • Width:  0.5m to 2.5
  • Length: 10m,15m, 25m,30m,50m,100m
  • Packingļ¼šPacking by pallet
  • Delivery: 10 days, according to specification and stock
Properties Detail

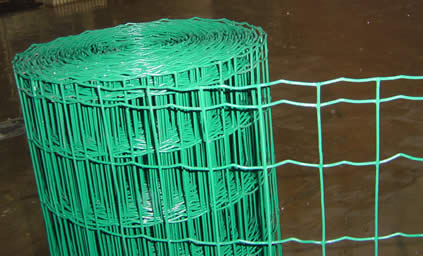

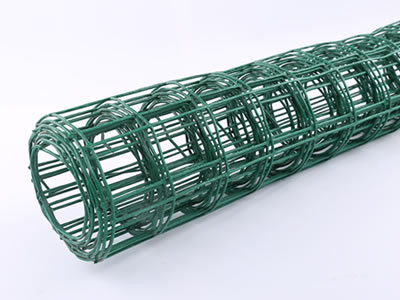

Holland wire mesh is also known as Dutch Mesh or Wave Welded Mesh. It can be made of black mild steel wire or galvanized wire, quality welded on each joint point, PVC PE or PP powder coated the surface by sulfide treatment, with good adhesion, anticorrosion, flittering luster, etc. The surface treatment also can be electro galvanized, hot dipped galvanized.

Euro fence is also known as dutch mesh or wave welded mesh. It can be made of black mild steel wire or galvanized wire, quality welded on each joint point, PVC PE or PP powder coated the surface by sulfide treatment, with good adhesion, anticorrosion, flittering luster, etc. The surface treatment also can be electro galvanized, hot dipped galvanized.

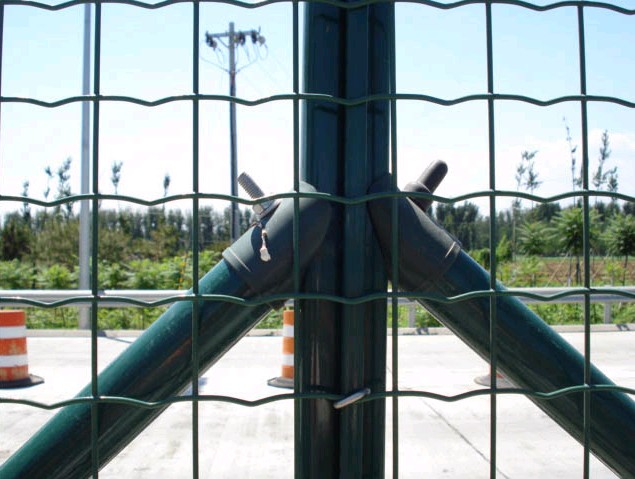

Holland wire mesh has a simple design structure, scientific principle of product design, affordable price, easy installation and other advantages. It is generally used as a guardrail, and it is deeply loved by people.

Material:High quality iron rod, Stainless steel wire, Low carbon steel wire, PVC coated wire

Surface Treatment: PVC, PE or PP powder coated, electro galvanized, hot dipped galvanized.

Weaving and Characteristic:

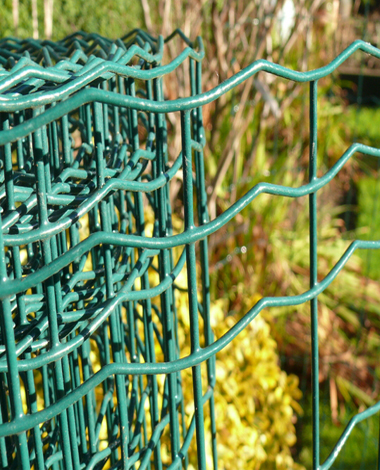

The warp bended beforehand is welded with the weft with the surface treated by galvanizing, hot-galvanizing, PVC coating, PVC plating and they have such characteristics as beautiful appearance, smooth mesh, firm welding, good beforehand bending property, steadiness, good anticorrosion and resistance to aging.

Chain Link Fencing Mesh Specifications:

Product name Specification Elucidation
Mesh Wire Dia. Size
Height
cm
BWG Wire Diameter
mm
Opening
cm
Fixed Link Length of mesh
(2.5m)
Length
(2.5m)
Weight (kg/set) Weight (kg/piece)
60 10#/8# 3.24 5x12 1.9 6.5 8.6
80 10#/8# 3.24 5x12 2.3 7.5 9.9
100 10#/8# 3.24 5x12 2.7 8.5 11.2
120 10#/8# 3.24 5x12 3.1 9 11.9
150 10#/8# 3.24 5x12 3.7 11 14.5
180 10#/8# 3.24 5x12 4.3 12.5 16.5
200 10#/8# 3.24 5x12 4.7 13.5 17.8
