Egg Collection System

HOME > Chicken Cages & Automatic Equipments > Egg Collection System >

Egg Collection System Quick Details:

  • Usage: Egg collection.
  • Fittings: collection belt system, egg collection machine and cross conveyors system.
  • Design:According to the needs of users.
  • Surface treatment: Electric static spray.
  • Power: 1.5KW.
  • Voltage: 380V.
  • Package: Directly loading in container with chicken cage mesh and other poultry equipments.
  • Delivery time:Within 15 days.
Properties Detail

Egg Collection SystemEgg Collection SystemEgg Collection System

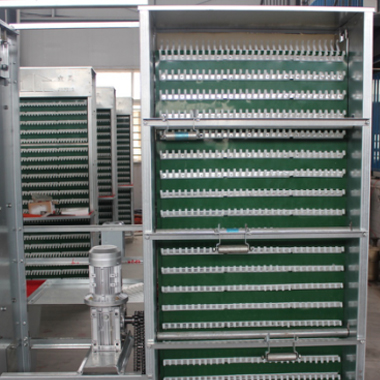

Egg collection system normally is installed based on “ A” type or “ H” type of chicken cage.Egg belt on bottom mesh of chicken cage accept eggs and rotate imultaneously to the egg collector machine with working table in the ending of every row of chicken cage, workers pick eggs up to egg tray, the other way to collect all eggs from working table is that cross conveyor connects all egg collector ending to transfer eggs directly to egg stock house, full automaticly, no labor.

Egg Collection System Specifications:

Size(L×W×H) (2.3~2.74)×1.4×(2.0~2.6) m
Voltage 380V
Power 0.75~3.0 kw
Egg collection ability(per hour) >3000 piece
Egg Broken Rate ≤0.50%
Belt Working Speed 1~3 m/min
Working Type 4 tiers working together
Paint Thickness ≥0.05 mm
Machine Weight 450 kg
Egg collecting belt width 100 mm
