PVC Coated Wire

HOME > Wires & Nails & Razor Barbed Wire > PVC Coated Wire >

PVC Coated Wire Quick Details:

  • Material: PVC plastics and quality black iron wire, galvanized iron wire, stainless iron wire etc.
  • Color: Common colors are green and black.
  • Application: industrial security fences, animal cultivation, stadium, freeways and tennis courts.
  • Tensile strength: 350 mpa-750 mpa
  • Weight/Coil: 1 kg-500 kg/coil
  • Packing: Plastic inside and hessian woven outside,and nylon woven outside
  • Delivery time : 20 days after received the deposit
Properties Detail

PVC Coated WirePVC Coated WirePVC Coated Wire

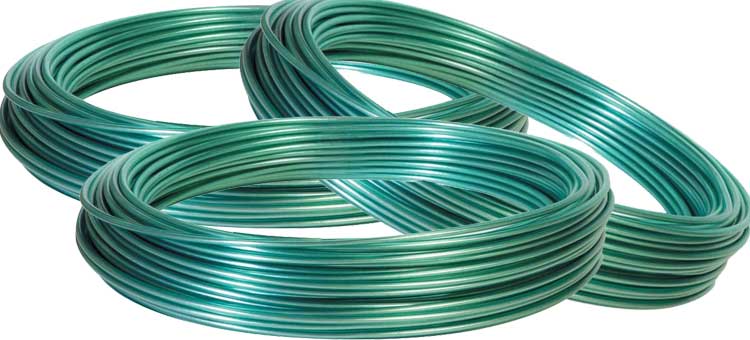

PVC Coated Wire is manufactured with quality iron wire. PVC is the most popular plastic for coating wires, as it is relatively low in cost, resilient, fire retardant and ossesses good insulating properties.Common colors available for PVC coated wire are green and black. Other colors also available on request.

PVC Coated Wire Application: the most popular use for  PVC coated wire is in the construction of chain link fences for industrial security fences, freeways and tennis courts. It is also used in other applications such as coat hangers and handles.

PVC Coated Wire Specification

BWG Diameter After Coated Color
8# 4.06mm 4.99mm As request
10# 3.25mm 4.15mm As request
12# 2.64mm 3.20mm As request
14# 2.03mm 2.60mm As request
16# 1.63mm 2.00mm As request
18# 1.22mm 1.52mm As request
20# 0.91mm 1.20mm As request
22# 0.71mm 1.00mm As request
24# 0.56mm 0.86mm As request
26# 0.46mm 0.70mm As request
28# 0.375mm 0.68mm As request
30# 0.315mm 0.60mm As request
33# 0.250mm 0.50mm As request
35# 0.210mm 0.48mm As request
Special Specification For Your Requirement
