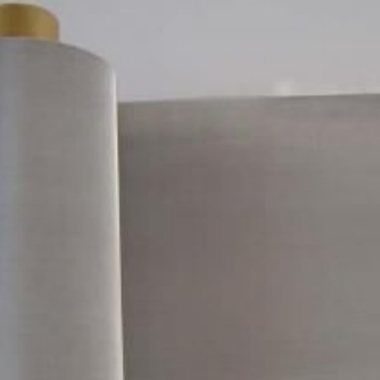

Hastelloy Wire Mesh

Hastelloy Wire Mesh Quick Details:

Type: Hastelloy Wire
Application: Aviation, Electronics, Industrial, Medical, Chemical
Purity: >99.99%
Specification: Wire dia:0.1--0.5mm Mesh:20--100mesh Opening area
Packaging: waterproof paper inside, plastic bags then load in wooden case or pallet or as customers' requirement
Delivery time:7-15 days after receiving the 30% deposit or as required

Hastelloy Wire Mesh Properties Detail

Hastelloy wire mesh is another nickel-based alloy wire mesh except for the monel wire mesh ,inconel wire mesh and nichrome wire mesh. The hastelloy is the alloy of nickel, molybdenum and chromium. According to the different chemical composition of material, the hastelloy can be divided into Hastelloy B2,Hastelloy B3, Hastelloy C22, Hastelloy C276 .Hastelloy wire mesh is the best corrosion resistant material among all of the metal materials,especially the hastelloy C-276. It is corrosion resistant in the acid, oxidizing, salt and other corrosion environments.

Hastelloy Wire Mesh Specifications:

Hastelloy wire mesh
Mesh/Inch	Wire diameter (mm)	Aperture (mm)	Mesh/Inch	Wire diameter (mm)	Aperture (mm)
1 mesh	5.00×5.00	20.40	18 mesh	0.35×0.35	1.06
2 mesh	1.80×1.80	10.90	20 mesh	0.30×0.30	0.97
3 mesh	1.60×1.60	6.87	30 mesh	0.25×0.25	0.60
4 mesh	1.20×1.20	5.15	40 mesh	0.21×0.21	0.43
5 mesh	1.00×1.00	4.08	50 mesh	0.19×0.19	0.32
6 mesh	0.80×0.80	3.43	60 mesh	0.15×0.15	0.27
7 mesh	0.70×0.70	2.93	70 mesh	0.14×0.14	0.22
8 mesh	0.65×0.65	2.53	80 mesh	0.12×0.12	0.20
10 mesh	0.60×0.60	1.94	100 mesh	0.10×0.10	0.154
12 mesh	0.50×0.50	1.62	120 mesh	0.08×0.08	0.132
14 mesh	0.45×0.45	1.36	150 mesh	0.065×0.065	0.104
15 mesh	0.40×0.40	1.29	200 mesh	0.050×0.050	0.077
16 mesh	0.40×0.40	1.19	250 mesh	0.040×0.040	0.062
