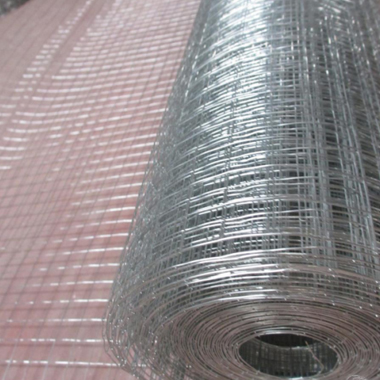

Stainless Steel Welded Mesh

HOME > Stainless Steel Wire Mesh & Filters > Stainless Steel Welded Mesh >

Stainless Steel Welded Mesh Quick Details:

  • Material: high quality steel wire
  • Usage: used for the loose strata to avoid falling rocks,suitable for shotcrete application
  • Serface treatment: available in black or hot dip galvanized
  • Size : wire aperture:50*50mm,100*100mm,150*150mm
  • Max width: 6m
  • Length: 1200m, 1700m, 2400m or according to the customers requirements
  • Diameter of stee wire: 3.15mm,4mm,5mm,6mm or according to the customers requirements
Properties Detail

Stainless Steel Welded MeshStainless Steel Welded MeshStainless Steel Welded Mesh

Stainless Steel Welded Wire Mesh is strong and long lasting. By its very nature stainless steel wire needs no additional finish,such as galvanizing or PVC, to protect it.The wire itself is extremely resistant to rust, corrosion and harsh chemicals. If you need a welded mesh or fence in an area with prolonged exposure to corrosives, stainless steel products will meet the demands.

Stainless Steel Welded Mesh Specifications:

Mesh Wire Gauge
(Inch) (mm) (BWG)
1/4×1/4 6.4×6.4 22/23/24
3/8×3/8 10.6×10.6 19/20/21/22
1/2×1/2 12.7×12.7 16/17/18/19/20/21/22/23
5/8×5/8 16×16 18/19/20/21
3/4×3/4 19.1×19.1 16/17/18/19/20/21
1×1/2 25.4×12.7 16/17/18/19/20/21
1-1/2×1-1/2 38×38 14/15/16/17/18/19
1×2 25.4×50.8 14/15/16
2×2 50.8×50.8 12/13/14/15/16
4×4 100×100 8/9/10
Standard roll length: 30m; width: 0.5m to 1.8m; Special sizes available at request; Packing: In waterproof paper in rolls. Custom packing available at request.
