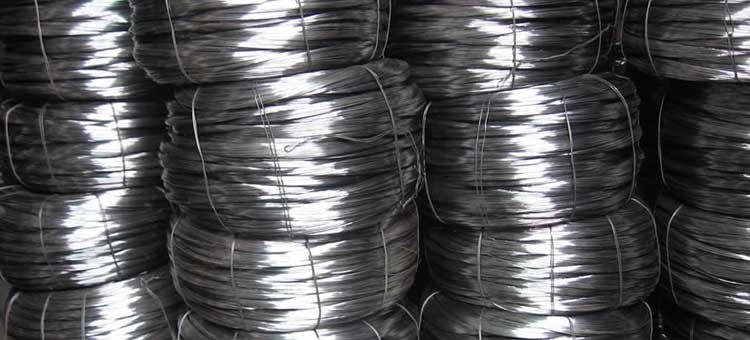

Black Iron Wire

Black Iron Wire Quick Details:

- Diameter: 0.5mm- 6.0mm
- Tensile Strength: 30-70kg/mm2
- Elongation: 10%-25%
- Weight:1kg-800kg/coil
- MOQ:100 kg
- Packaging: Inside with plastic film and outside with hessian
- Delivery Detail: 10-15 days after received your deposit

Properties Detail

Black annealed wire is made of low-carbon steel cold drawn, heated, constant temperature, insulation and other processing into a soft wire products. The use of wire is different, the composition is different, it contains the ingredients are: iron, cobalt, nickel, copper, carbon, zinc, and other elements. The hot metal blanks rolled into 6.5mm thick steel bar is the wire rod, and then into the drawing device into a different diameter of the line, and gradually reduce the diameter of the drawing plate, cooling,annealing, coating and other processing Craft made of a variety of different specifications of the wire.

Black Iron Wire

Gauge	SWG in mm	BWG in mm	In Metric system mm
8#	4.06	4.19	4.00
9#	3.66	3.76	3.80
10#	3.25	3.40	3.50
11#	2.95	3.05	3.00
12#	2.64	2.77	2.80
13#	2.34	2.41	2.50
14#	2.03	2.11	2.10
15#	1.83	1.83	1.80
16#	1.63	1.65	1.65
17#	1.42	1.47	1.40
18#	1.22	1.25	1.20
19#	1.02	1.07	1.00
20#	0.91	0.89	0.90
21#	0.81	0.813	0.80
22#	0.71	0.711	0.70
